Article 3.WRH
Splited balancing rings with fixed-location equalization

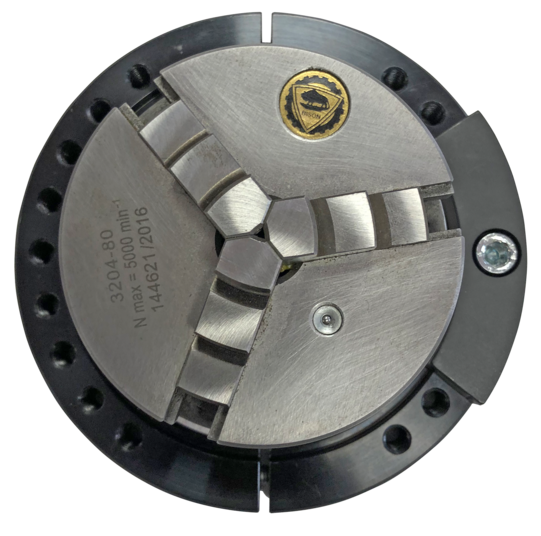

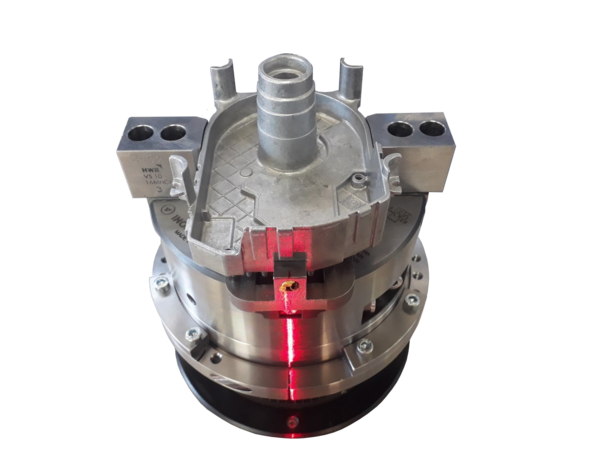

For additional assembling at tools and chucks
Type
3.WRH.A - Threaded holes, axial

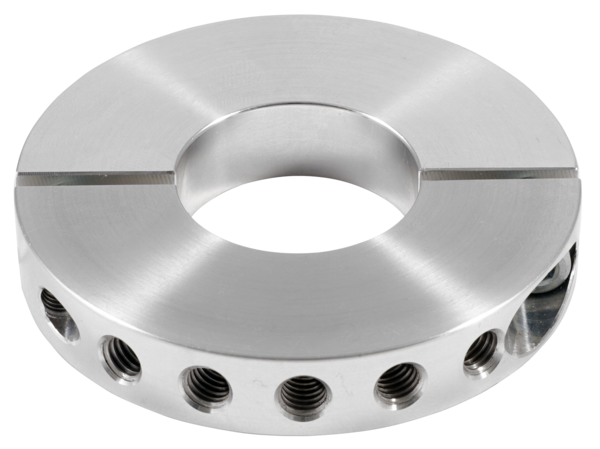

3.WRH.R - Threaded holes, radial

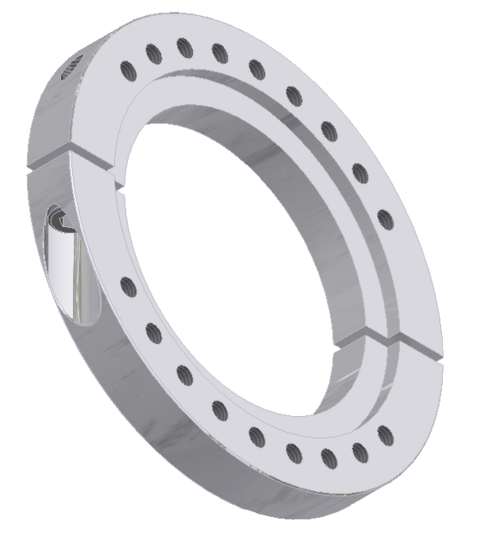

- Two half rings, for individual assembling.
- Threaded holes for small unbalance compensations.
- Threaded holes axial or radial.

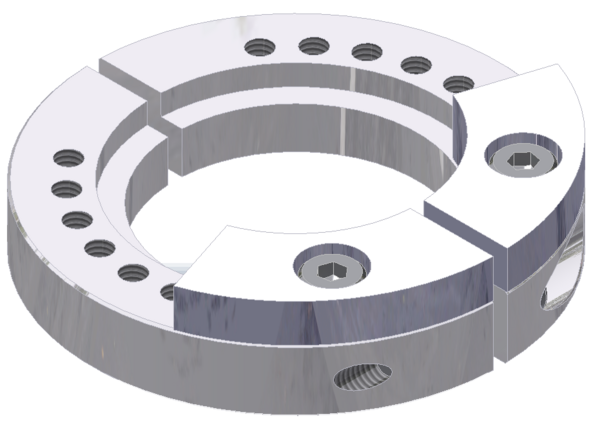

- Additional segments in different dimensions can be screwed on if large unbalance has to be compensated.
- Customized sizes on request.
Catalog-# / Description
| Order-# | Description | Inside-Ø [mm] | Outside-Ø [mm] |
|---|---|---|---|
| 1064447A | 3.WRH.A.050.011.001 | 50 | 77 |
| 1063853A | 3.WRH.A.080.039.001 | 80 | 110 |
| 1063903A | 3.WRH.A.100.058.001 | 100 | 130 |
| 1063904A | 3.WRH.A.125.087.001 | 125 | 155 |
| 1063905A | 3.WRH.A.140.105.001 | 140 | 170 |
| 1063907A | 3.WRH.A.160.135.001 | 160 | 190 |
| 1063906A | 3.WRH.A.200.204.001 | 200 | 230 |
| 1064760A | 3.WRH.A.220.310.001 | 220 | 280 |
| 1063908A | 3.WRH.A.250.310.001 | 250 | 280 |
| 1063909A | 3.WRH.A.315.482.001 | 315 | 345 |
| 1063910A | 3.WRH.A.400.750.001 | 400 | 430 |
