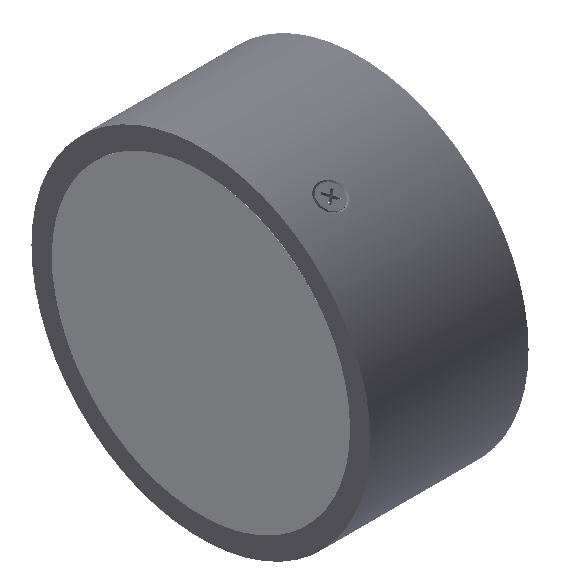

Article 3.S.05x
Catalog-# / Description
| Catalog-# | Order-# | Description |
|---|---|---|
| 3.S.05 | 1017594A | 6-pole, without cable, with plug, POM housing, without AE acoustic emission |
| 3.S.05C | 1053508A | 7-pole, without cable, with plug, POM housing, without AE acoustic emission |
| 3.S.05C.03 | 1017597A | 7-pole, 3m, POM housing, without AE acoustic emission |
| 3.S.05G | 1023174A | 7-pole, without cable, with plug, POM housing, with acoustic emission |
Technical details
| Technical data | |
|---|---|

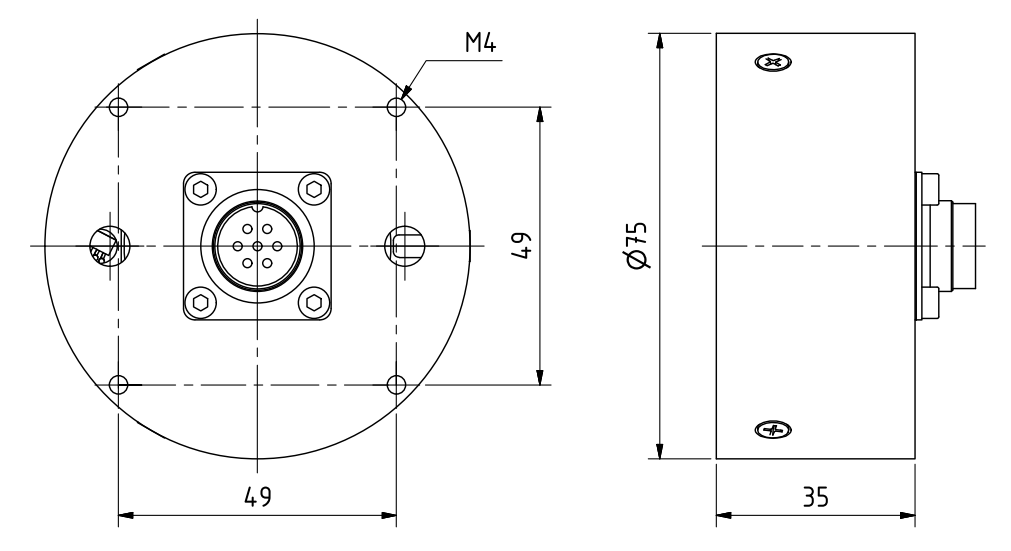

| Dimensions D x H | Ø75x35mm |
| Case | POM |
| Plug | 6-pole at 3.S.05 for balancing electronics of series 3.AB2xx |
| Plug | 7-pole at 3.S.05C and 3.S.05G for balancing electronics of series 3.AB3xx |
| Application note | The distance to the receiver must be approx. 5mm. The active side of the transmitter must be oriented towards the receiver. |
